The San Juan Vans SJ3

MSRP: $205,000.00

The SJ3 is the San Juan Vans flagship model built on the Mercedes-Benz Sprinter 144 4x4 chassis. This unique design allows for comfortable seating and sleeping for three people, while still maintaining an open feel and loads of storage options for all of your toys.

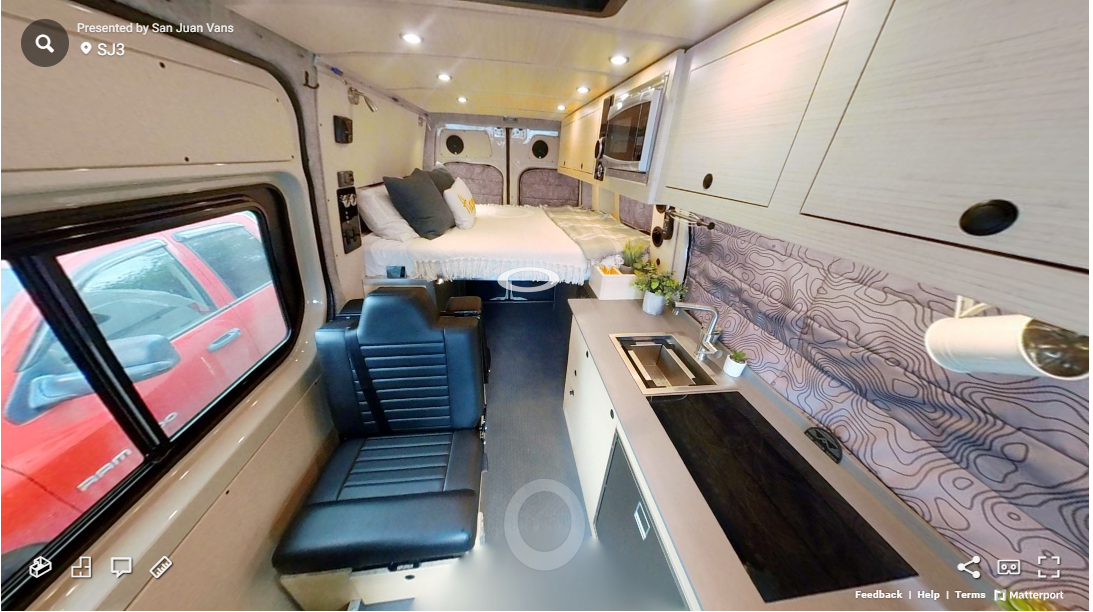

Virtual Tour Click Image Below

SJ3 Specs

Interior Layout

  • Seat belted seating and sleeping for three with queen size rear bed and convertible rear seat/bed

  • Kitchenette with hot/cold faucet and 2 burner induction cooktop

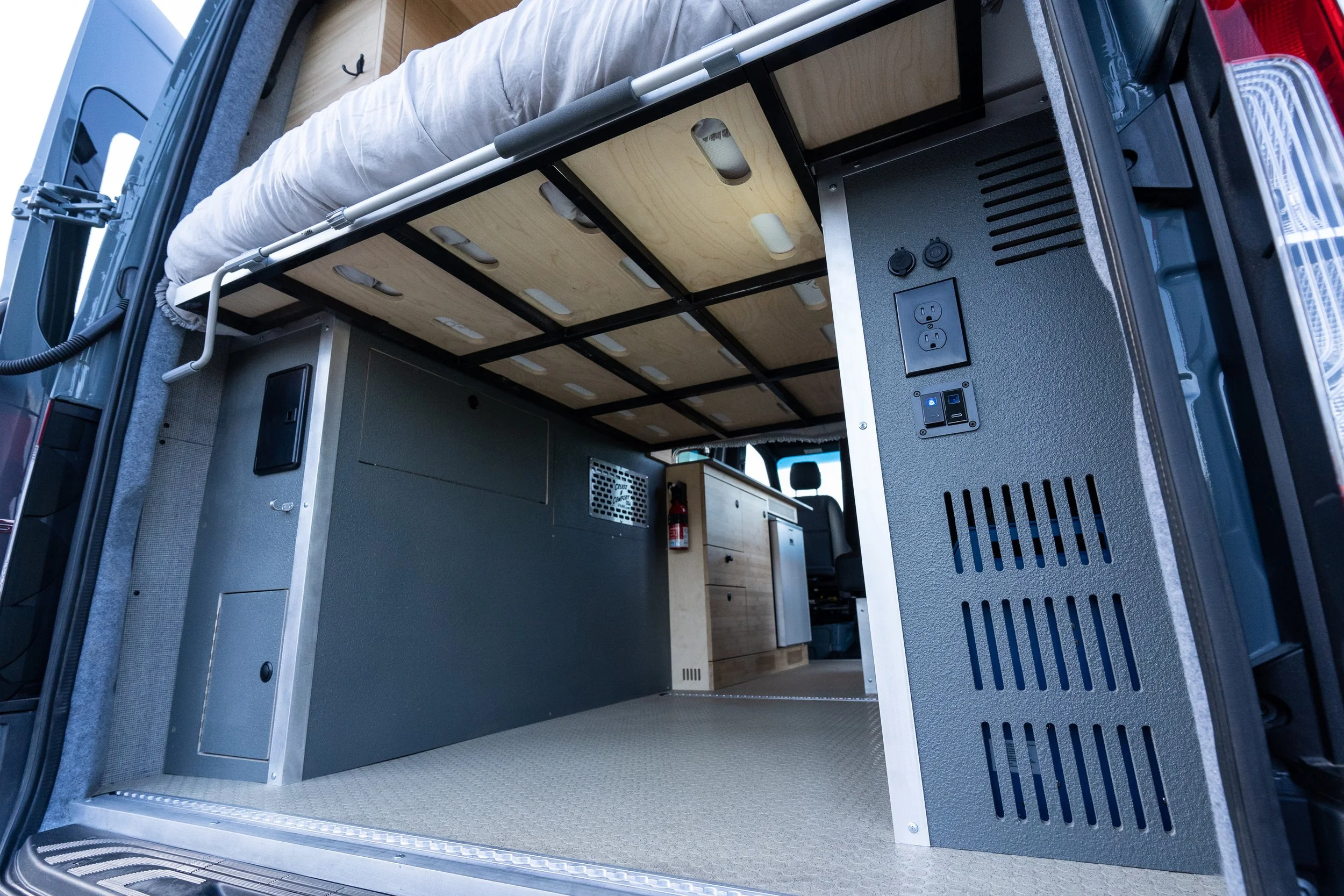

  • 36” elevated rear bed with optional slider trays in garage area

  • 78” of sleeping length on horizontally mounted bed system (Flare bump outs for extra sleeping width)

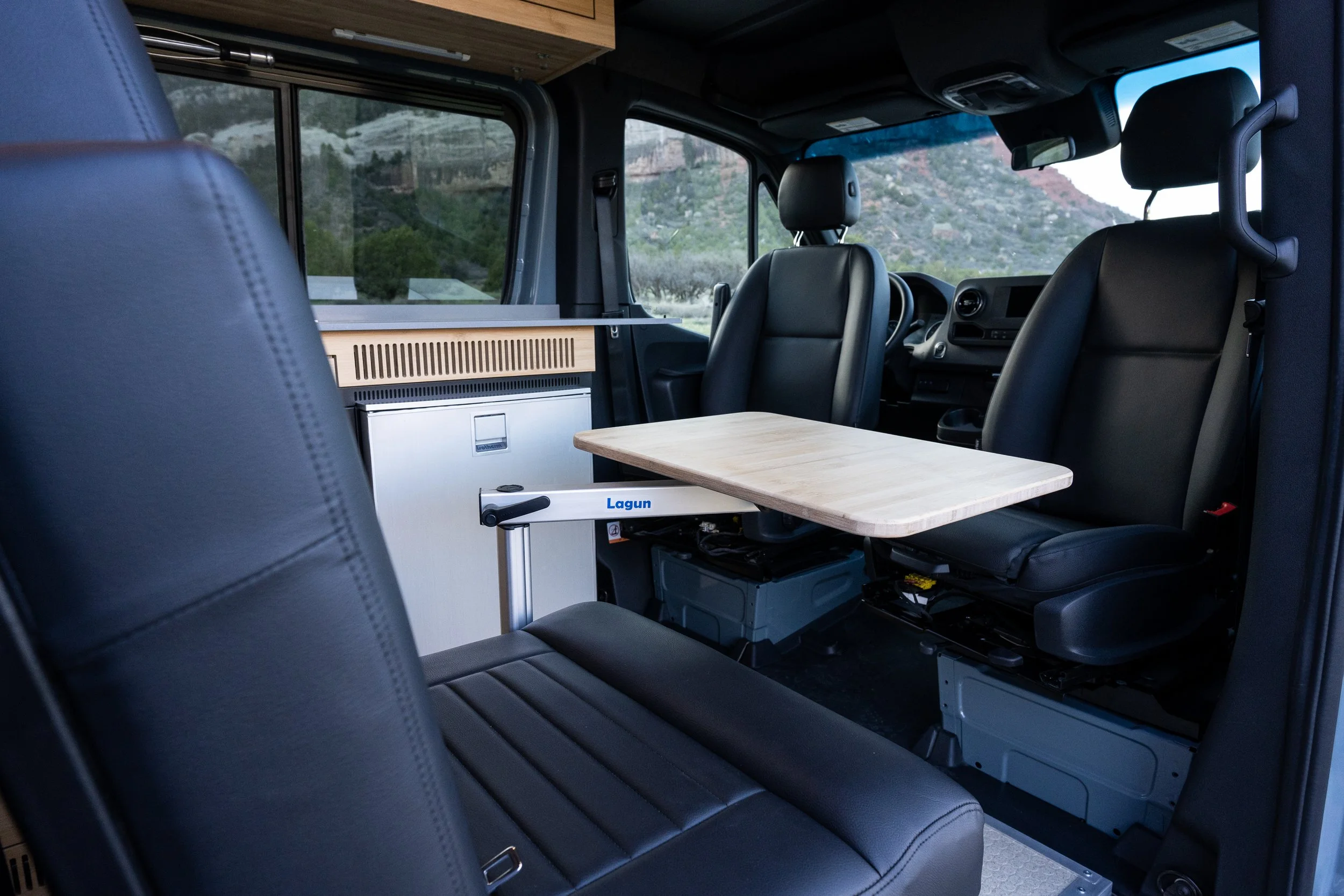

  • Lagun table with storage and interior/exterior mounting points

  • Bamboo or aluminum upper and lower cabinetry

  • 85L high efficiency DC refrigerator

  • Rear hot/cold shower sprayer system

  • Front swivel seats

  • Over cab storage shelf

  • Premium Rockford Fosgate house sound system with auxiliary receiver for off-grid listening

  • Screened slider windows in slider door, driver side, and in flares around bed area (insulated window covers included for all windows)

  • Optional cassette or dry flush toilet

Exterior Features

  • Full aluminum roof rack with side ladder

  • Fiamma F80s awning with integrated mounting points

  • High output exterior LED lighting on sides and rear

  • Optional nerf bars or running boards

  • Optional winches, skid plates, bumper guards, suspension upgrades, onboard air compressors, and other accessories available.

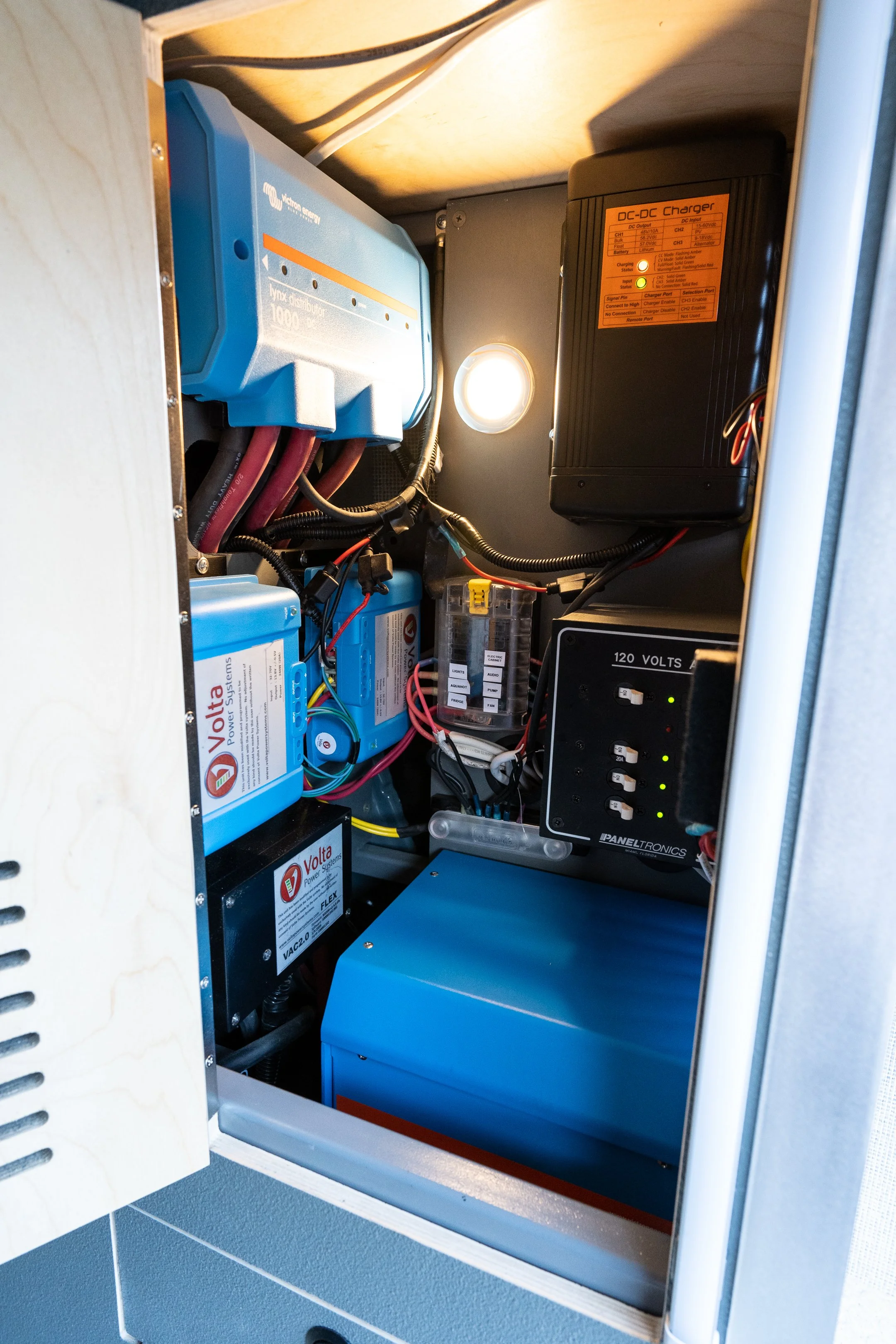

Electrical System

  • 12 KW hour house battery system powered by Volta Power Systems (Some models may utilize Lithionics 48v systems)

  • Secondary alternator with up to 7,000 watts of charging ability

  • Touchscreen interface for monitoring power system

  • 3kw inverter/charger

  • 30 amp shore power service (trust us, you won’t need it!)

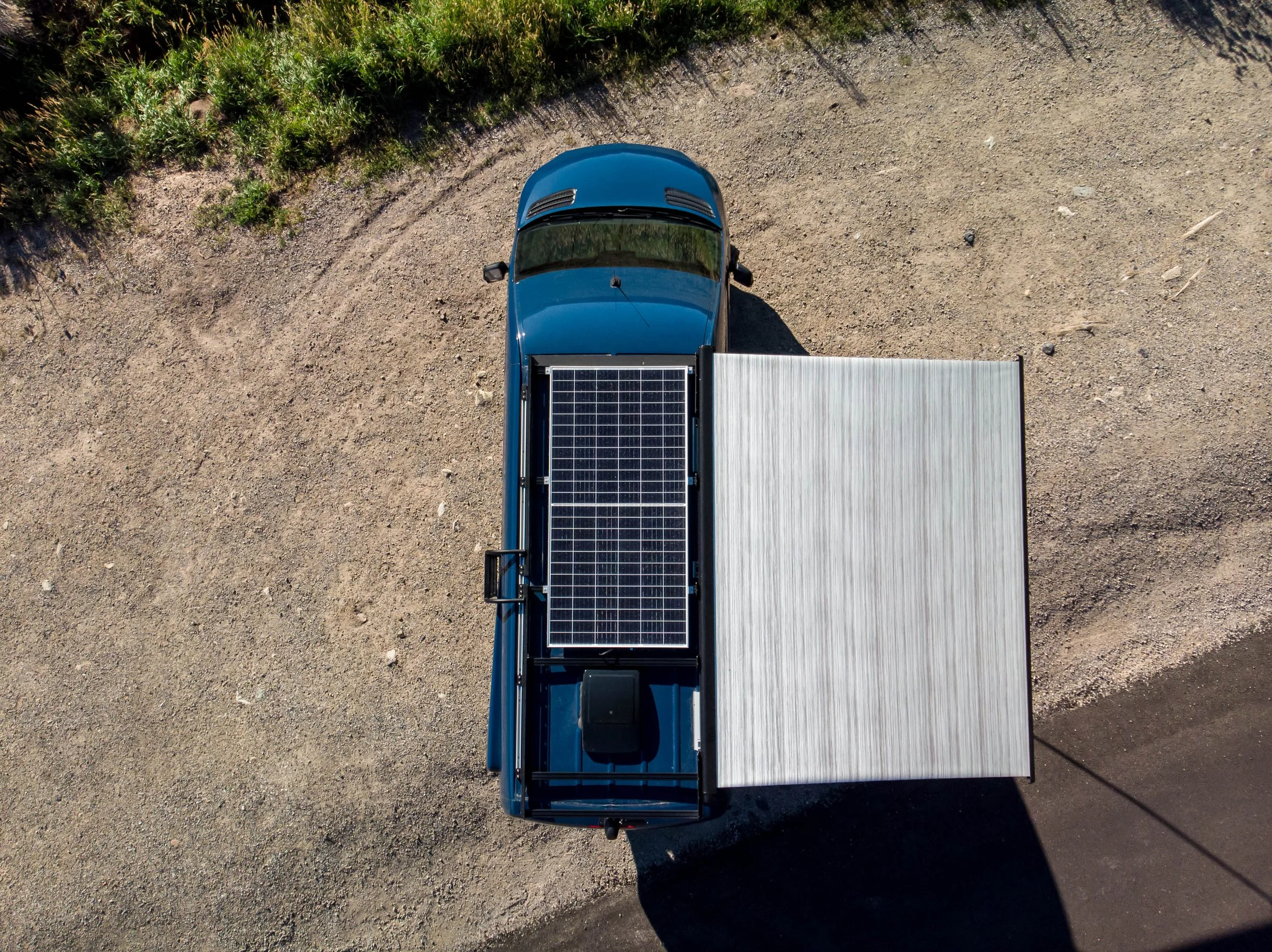

  • 410 watt roof mounted solar

HVAC

  • Diesel powered (from van’s fuel tank) hydronic air and on demand water heating system with touchscreen interface and high altitude capability (16,000 ft.)

  • Heat registers integrated into kitchenette

  • 48 volt 10k BTU interior ducted air conditioner with touchscreen interface. 10+ hours run time on fully charged house battery and takes up zero roof space

  • Maxxair Deluxe remote operated roof fan

Plumbing

  • 20 gallon interior wheel well water tank

  • On demand water pump

  • 11 gallon grey water tank with electric dump valve

  • Bypass valve for easy winterization

  • Optional auxiliary 21 gallon water tank for 41 gallons of water storage

  • On demand hot water provided by hydronic diesel powered heater system
